Decorative Wire Mesh

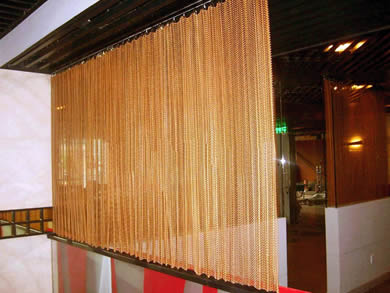

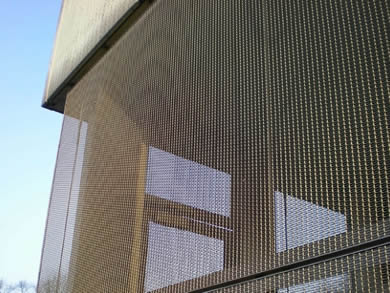

Use: The stand side of the buliding, obstruct, keep light out, balcony,porch, roll curtain, stair, airport, hotel, museum, opera house, odeum, exhibit hall, market etc. It is easy to install and also have beautiful surface. In different ray, different environment, different time, different corner, you will find different effect.

Material: Stainless steel wire304, 304L, 306, 306L. Super quality stainless steel, aluminum alloy, brass, copper or other alloy materials, or can according to the requirements of customers.

Specifications:

  • Vertical wire dia: 0.5-2.5mm
  • Horizontal wire dia: 0.5-2mm
  • Pitch: 1mm-30mm
  • Open area: 5%-90
  • Note: The detailed specification,we can according to your requirement.

Types:

  1. Material: SS 304 316
    Weft rod diameter: 0.5 mm
    Rod pitch: 1.8 mm
    Warp cable diameter: 0.4mm ( 1x7 )
    Cable pitch: 3.7mm
    Weight: 1.65 kg /sq meter,1.9,2.1,
  2. Material: p-copper
    Weft rod diameter: 0.5 mm
    Rod pitch: 1.8 mm
    Warp cable diameter: 0.4mm ( 1x7 )
    Cable pitch: 3.7mm
    Weight: 1.9 kg /sq meter
  3. Material: brass
    Weft rod diameter: 0.5 mm
    Rod pitch: 1.6 mm
    Warp cable diameter: 0.4mm ( 1x7 )
    Cable pitch: 3.7mm
    Weight: 2.1 kg /sq meter
  4. Material: AL
    Weft rod diameter : 2.0 mm(flat rod)
    Rod pitch: 4.2 mm
    Warp cable diameter: 1.5mm ( warped wire )
    Wire pitch: 17.5mm
    Weight: 2.3 kg /sq meter
  5. Material: SS 304 316
    Weft rod diameter: 3.0 mm
    Rod pitch: 10 mm
    Warp cable diameter: 2.0mm ( 1x19 )
    Cable pitch: 80mm
    Weight: 5.9 kg /sq meter
  6. Material: copper
    Weft rod diameter: 2.0 mm
    Rod pitch: 8.0 mm
    Warp cable diameter: 2.5mm (7x7)
    Cable pitch: 6.0mm
    Weight: 8.5 kg /sq

Please feel free to contact me,Welcome to China and our factory. This is our product,with good quality and very competitive price.

If you need to consult the price, please contact the business department by e-mail:
Anyida will service for you !
Tel: +86-22-22-23617450
E-mail: info@wiremeshgroup.com
Phone (WhatApp): +86 18630910128

When you contact us, please provide your detail requirements. That will help us give you a valid quotation.
